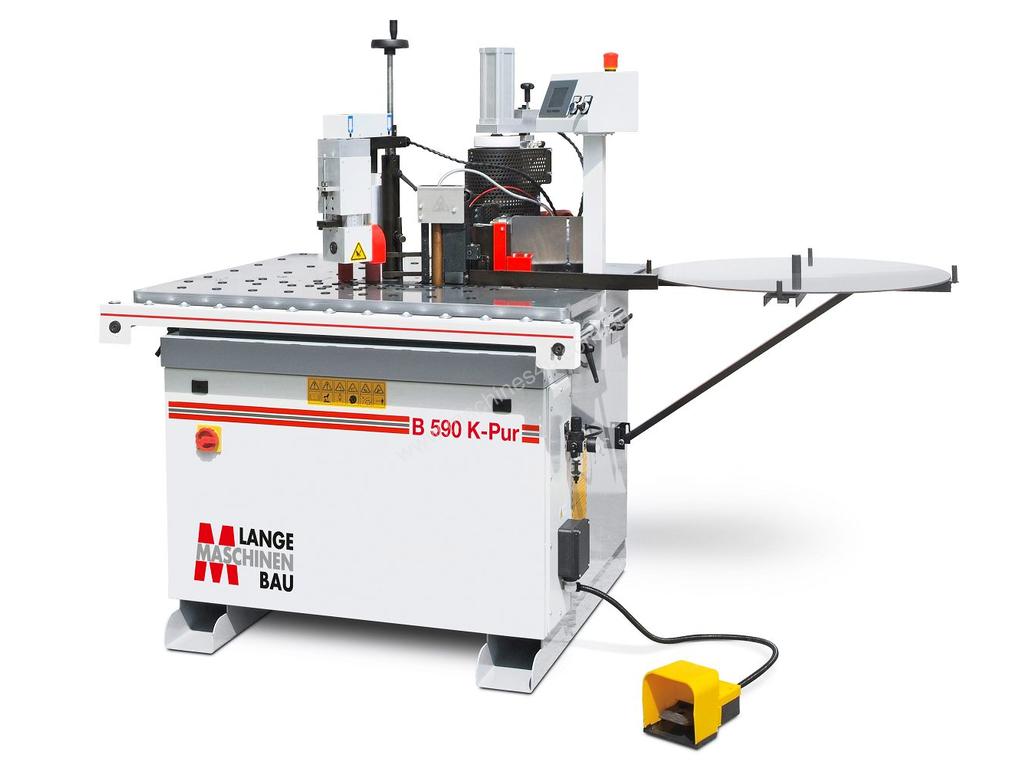

LANGE Contour edgebander PUR

Biggera Waters, QLD

Contour edge banding machine up to 140 mm Work piece thickness, Pre-melting unit for EVA and PUR hotmelt, Speed from 2,5 – 12m/min, Quick change glue pot, Glue pot and glue roller teflon coated, Standby function, Guilltotine cutting max. 615mm², tilting machine table up to 45° and digital length counter.

BASIC FEATURES:
- High-rigidity, electrically welded machine frame.
- The machine has a compact design, is versatile and user friendly.
- Suction with 80 mm Ø connector.
- The machine features a new, patented worktable which grants smooth panel sliding and extremely
flexible edging without using jigs.
- Worktable tilts to 45o. (Sliding table and power-feed available on request)
- Sliding on nylon blocks grants flawlessness and perfect cleaning of the panel melamine surfaces.
- Cardan-shaft transmission connected to the glue spreading roller, protected by a torque
limiter.
- Adjustable side and upper edging guides.
- Adjustable edging guide on the gluing roller.
- Revolving roll edging holder Ø 500 mm.
- Built-in electrical cabinet with main switch.
- The control panel is placed in a very convenient and functional position, together with machine
start and control pushbuttons.
- Machine control is granted by a 3,5" colour touch screen PLC placed in a very convenient and
functional position; all functions such as program change, temperature variation, working speed
and unit enabling are easily accessible.
- The A16 is designed for edge banding of straight panels with straight profile, for concave and
convex curves with minimum concave curve radius 20 mm.
- Edge shearing system up to 3 mm with electronic millimetre counter (encoder), with three working
options, manual for workpieces with different dimensions, automatic or automatic with self-
learning function (patent) for large-sized workpieces.
- Slow-down areas can be pre-set by a simple pressing of the supplied pedal, to help the operator
during gluing on critical areas (curves), thus obtaining a better gluing.
- New design gluing unit with forefront technical features.
- Glue tank capacity 2 kg with original Dupont® complete Teflon coating granting the best working
conditions both with PU glues or EVA hot melt glues.
- Heated Gluepot roller.
- Integrated programmable stand-by function to control automatic temperature reduction after a
non-use period, stops glue spreading roller revolving and reduces power consumption whilst
preserving glue technical features.
- Installed power is 2,4 kW, equipped with quick release system for easy maintenance, heated glue
roller with dedicated temperature control and long life system (patent pending) in order to reduce
extraordinary glue tank maintenance to the minimum.

Technical Data:
Workpiece thickness: 10 - 140 mm
Edging thickness: 0,4 - 3,0 mm
Capacity of glue pot: 2 kg
Minimum internal radius: 20 mm
Electrical connection: 400V, 50 Hz , 3Ph
Total load: 5,8 kW
Feed speed: 2,5 - 12 m/min
Air connection: 6 bar
Space required: approx. 1800 x 1000 x 1400 mm with turntable
Working height: approx. 875 mm
Net weight: 500 kg
