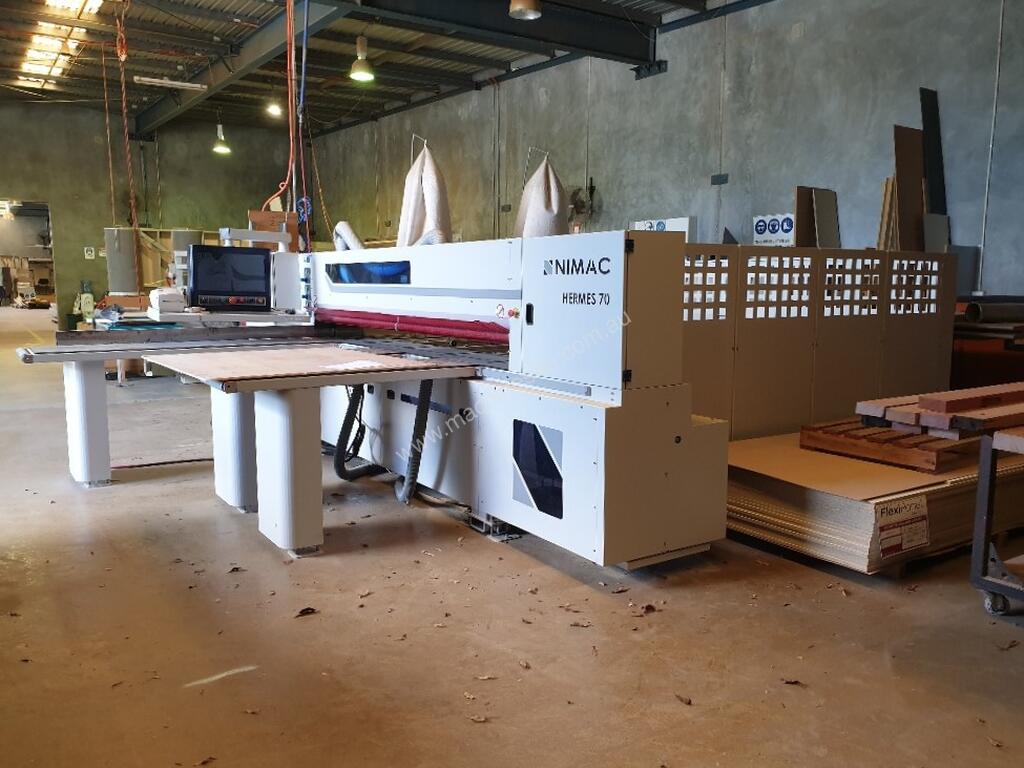

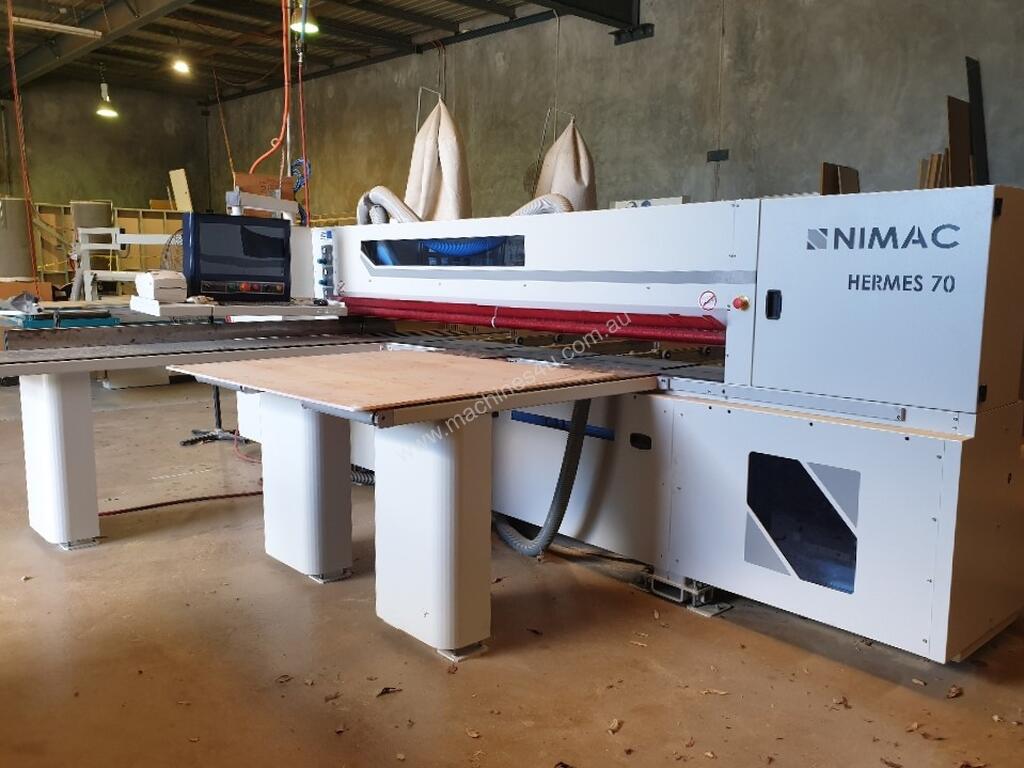

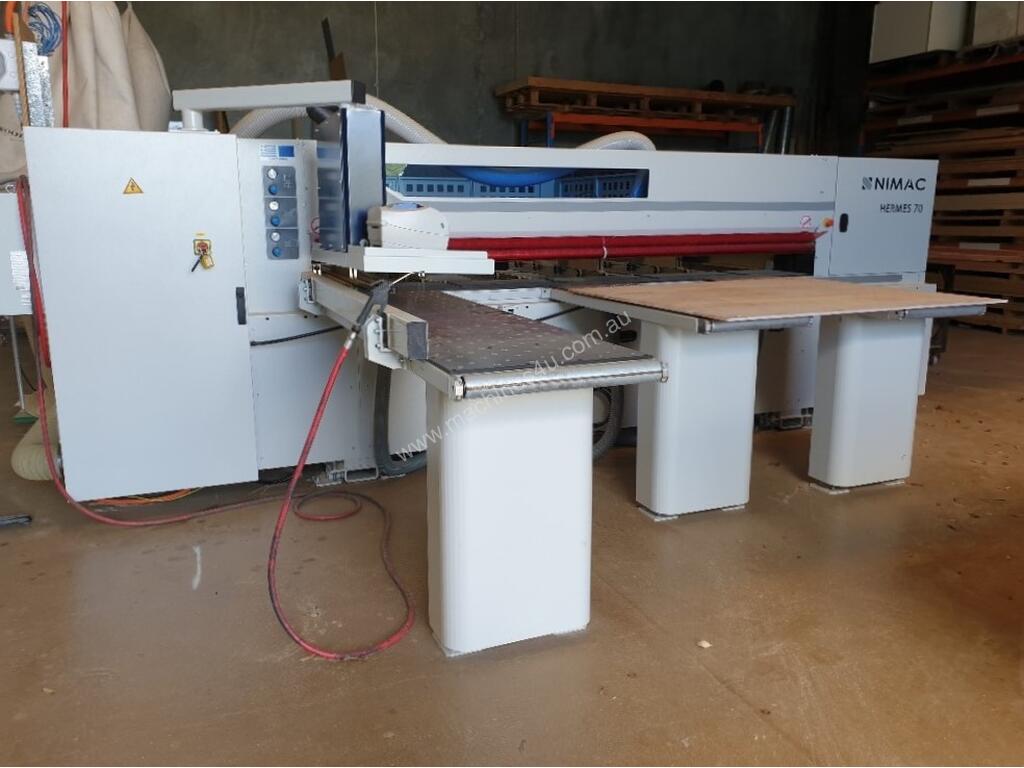

Beamsaw NIMAC HERMES 70 European beamsaw

Biggera Waters, QLD

As new, hardly used since installation we are presenting this well made quality beamsaw from NIMAC Greece.
Take advantage of the great experience in the section of woodworking machines and dedicated at the customer's total care, NIMAC Group can offer customized production lines for the particular needs of every customer.

Technical data
• Cutting length 2900mm. Pusher’s stroke 2900mm

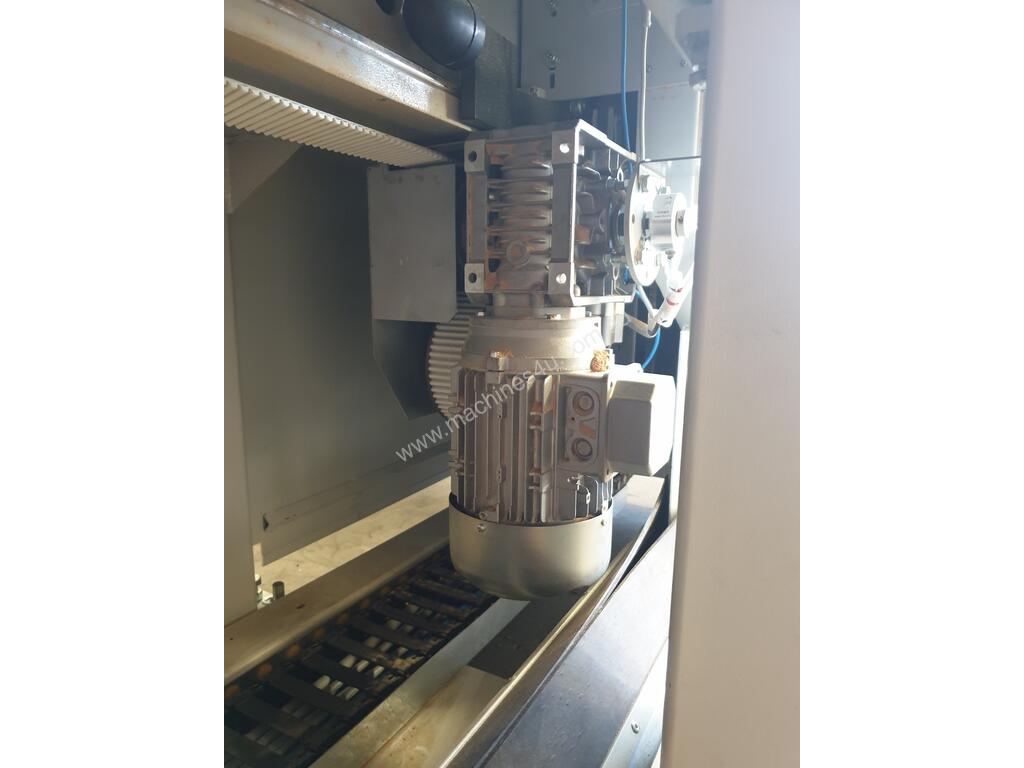

• Main saw motor 10 Hp
• Scoring saw motor 1,5 Hp
• Blade projection 70 mm. Useful cutting height 60mm.
• Automatic pusher with 5 Grippers.
• Cutting speed 1-70 m/min. Saw unit controlled by inverter .
• Pusher’s speed 0,5–25/30m/min. Pusher controlled by inverter..
• Magnetic tape for measurement (non-contact system). Accuracy 0.1 mm

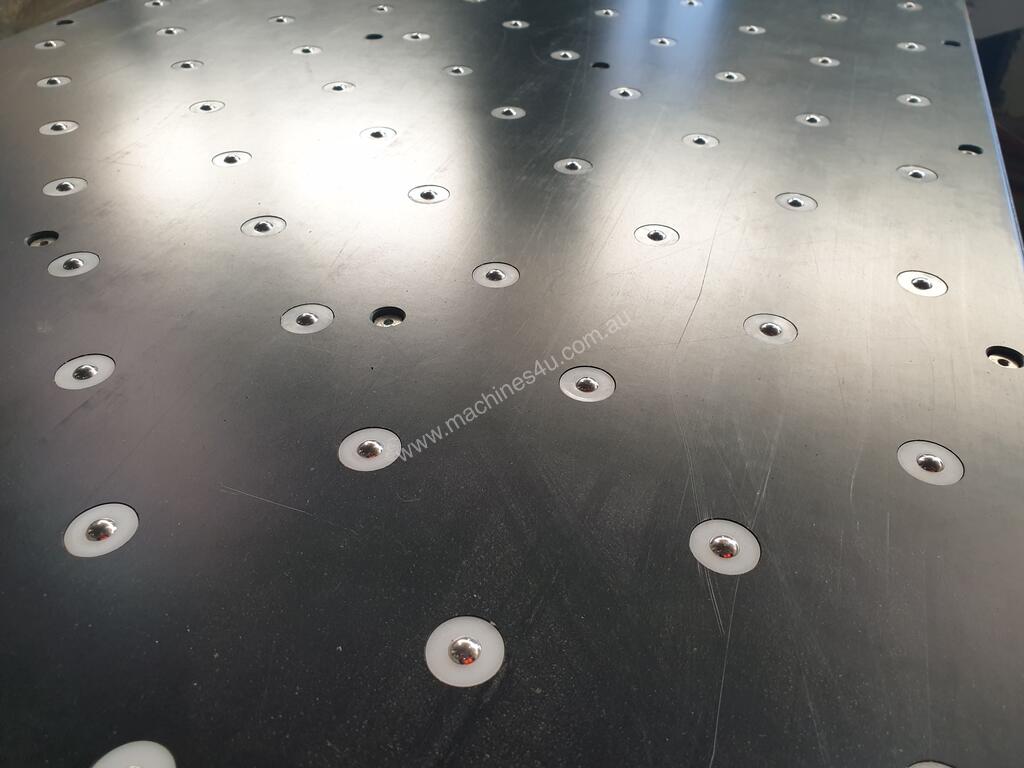

• 4 Air-tables tables covered with phenolic material 3 x 1300 x 600mm.1 x 2000 x 600mm
• Scoring unit axial and vertical micrometric adjustment.

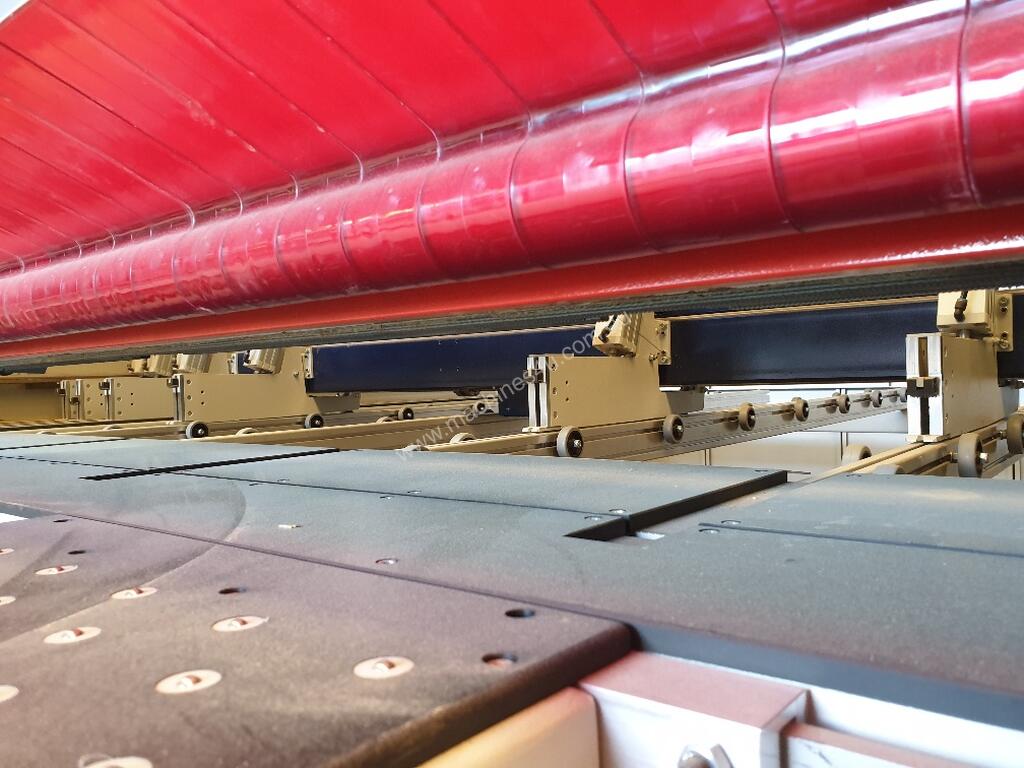

• Slotted pressure beam. The panels are always gripped up to the last cut. Vertical pneumatic
movement with precision rack and pinion system.

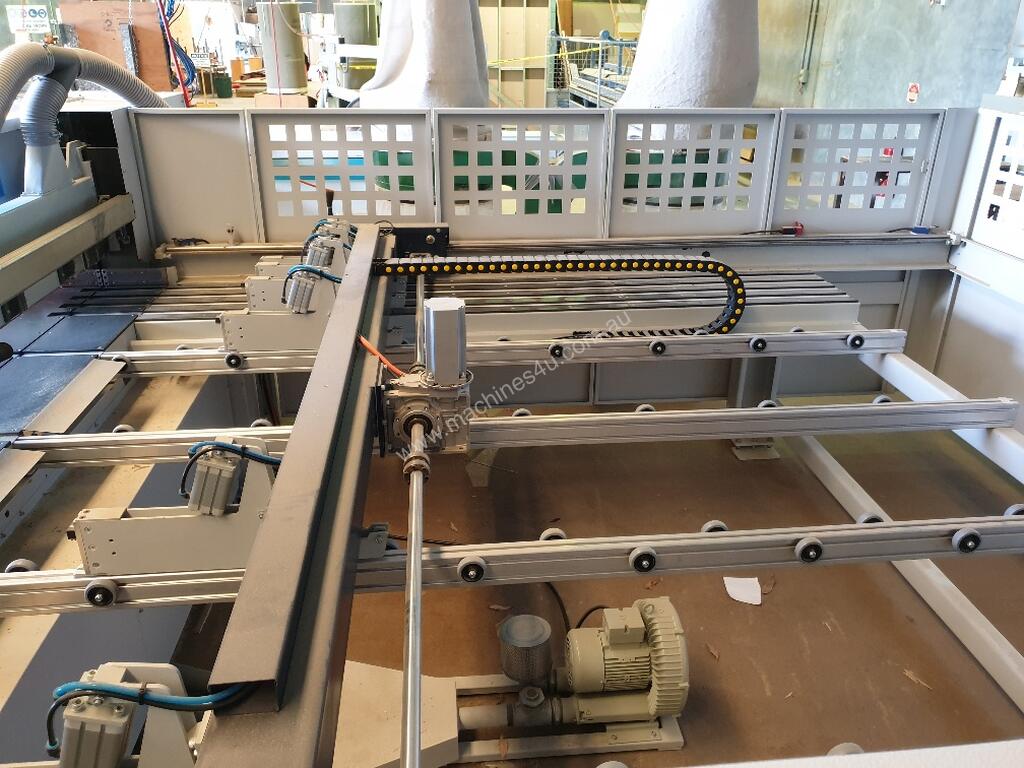

• Pusher travels through precision pinions and racks over two sturdy “H” beams.
• Automatic Side aligner (40mm – 1200 mm).
• Main saw diameter 300 mm(opt 320 mm)
• Scoring saw diameter 160 mm.
• Formaica 10 mm for the tables.

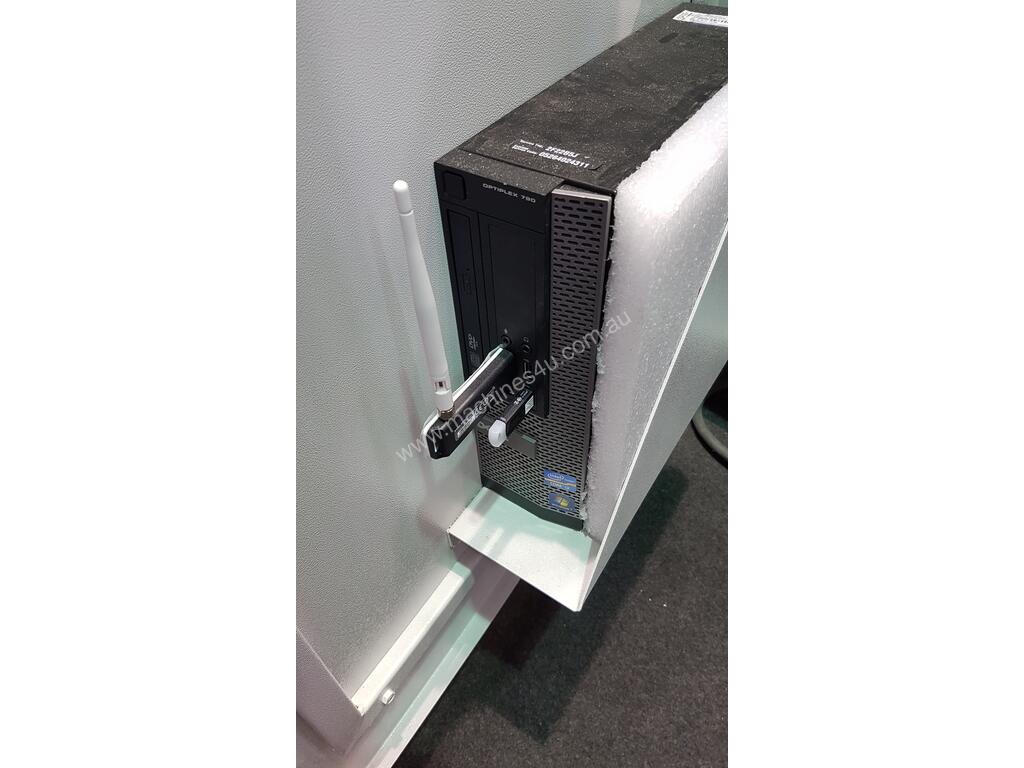

• Software:opticut pro standard(cutting optimizer)
• Controller Tpa(Italy)

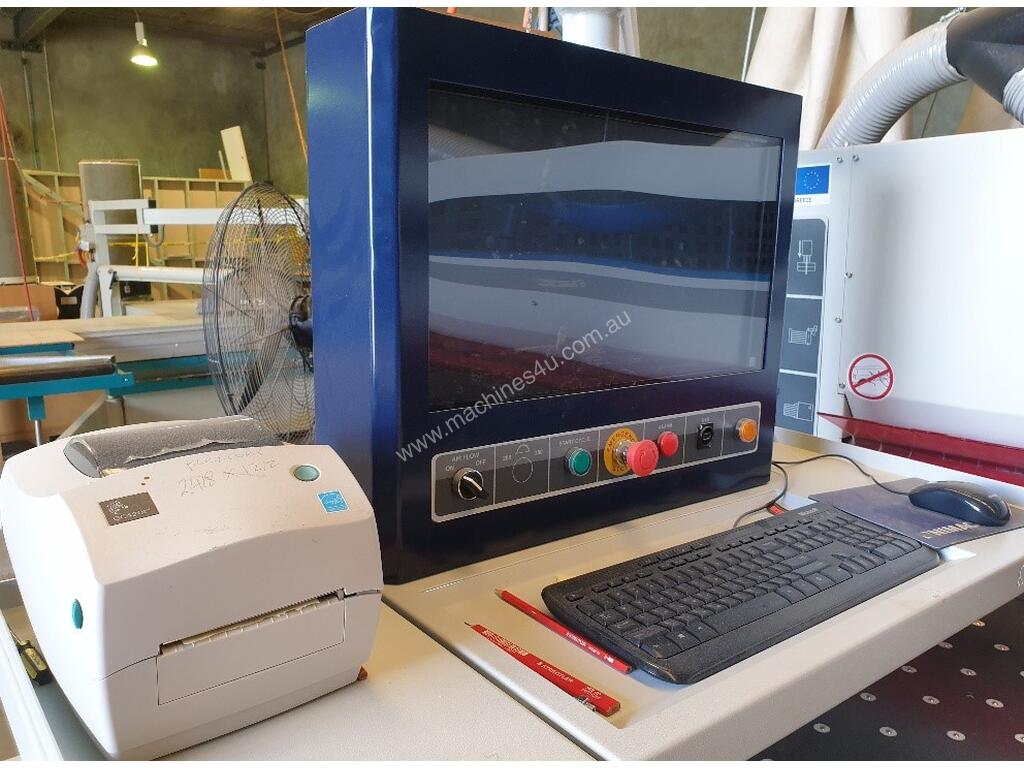

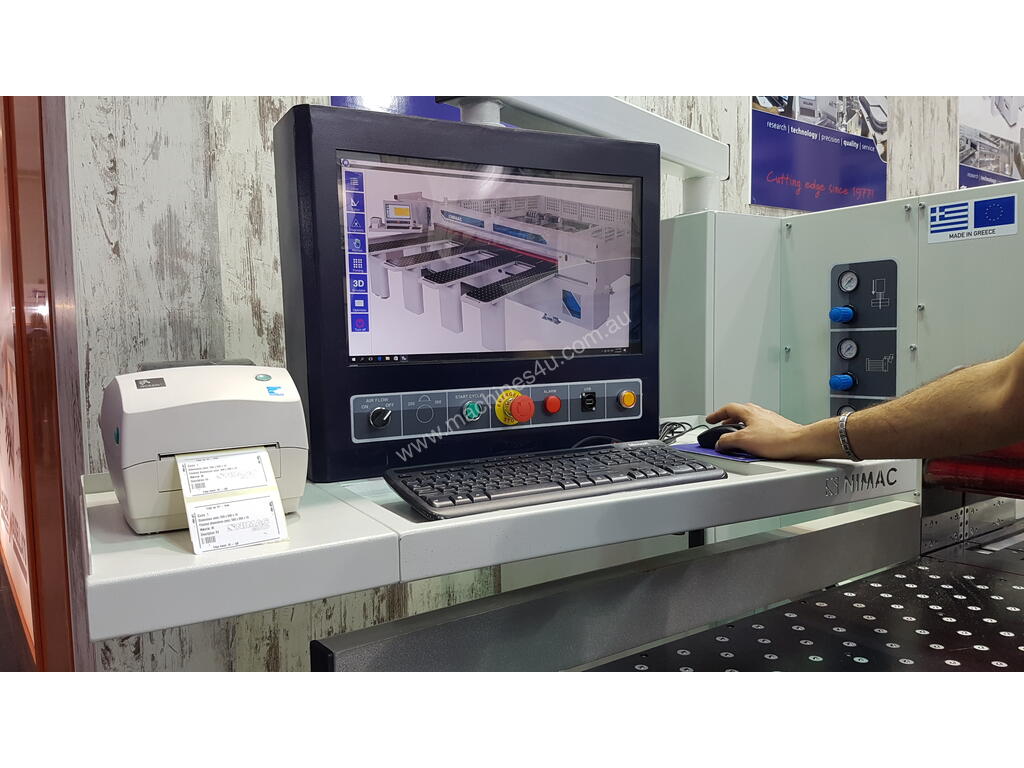

• Overhead control panel on the left side.

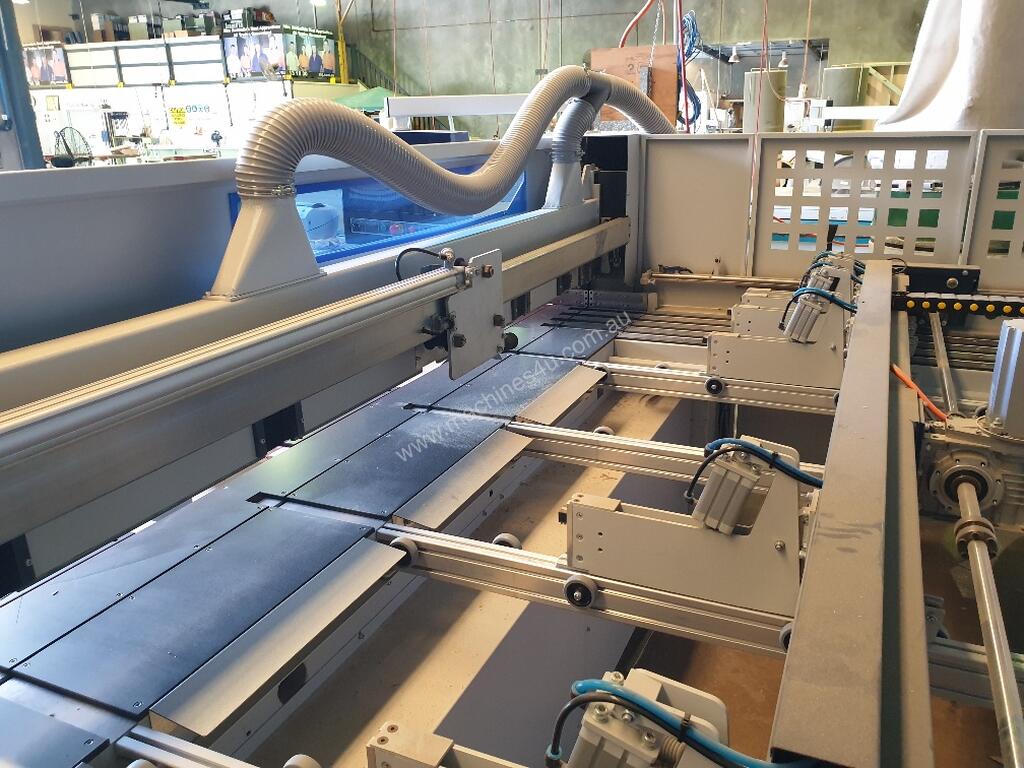

• Double dust collection system: top dust collection system on the pressure
beam(2x100mm)to keep worktable clean and lower dust collection(150mm) system on the
saw carriage.1 more on side 100mm
OPTIONAL EQUIPMENT ALSO INCLUDED WITH THIS MACHINE
CE Safety standards
Bar code software and Usb label printer

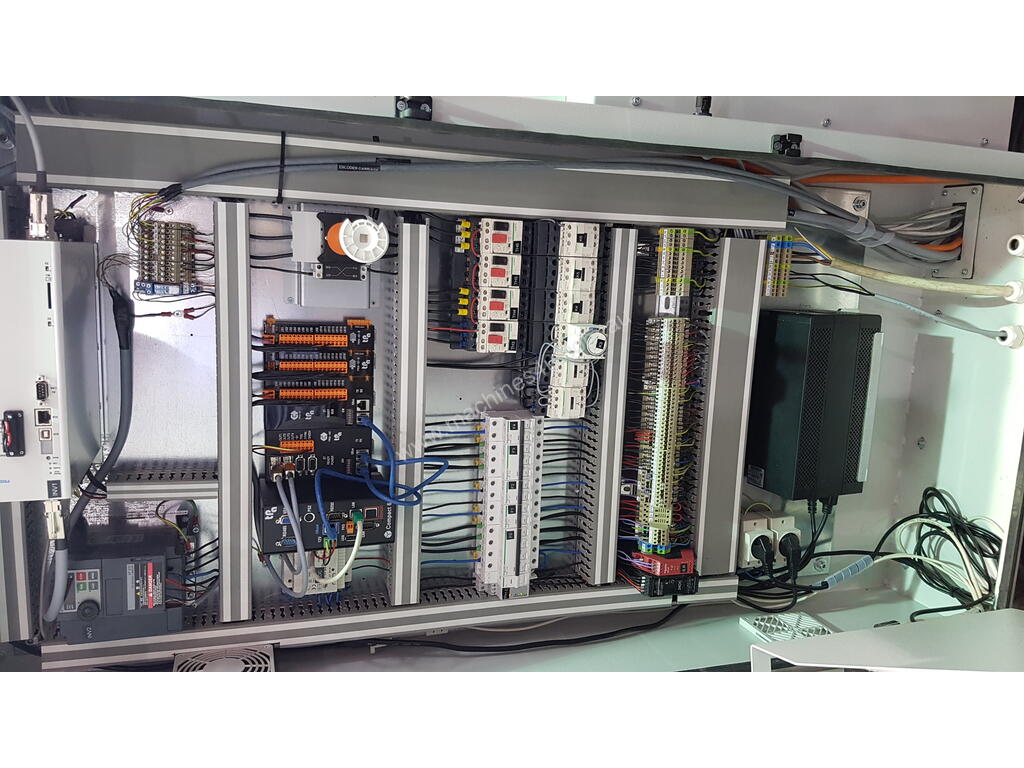

Air Conditioner for electrical cabinet
Button start/stop emergency

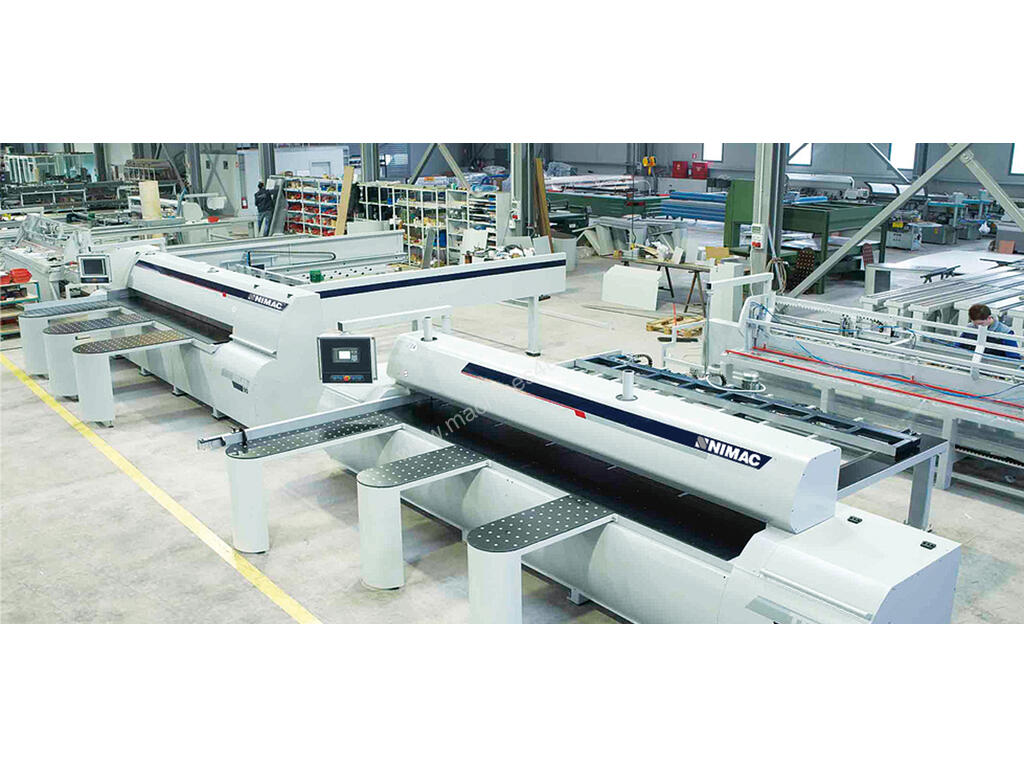

In 1977, the company NIMAC Group began the production of horizontal panel saws. The continuous effort for the improvement of the machines and the reliable service confirmed the company as one of the most important manufacturers of beam saws with a remarkable international presence. The gross percentage of exports, more than 50% of the production and the sales at the biggest furniture industries, are indicative of the company's success. Aiming always at the production of high quality and value-priced machines for the world wide marketplace, NIMAC Group continues the modernization of its productive procedure maintaining strict quality standards (ISO 9001).
